UV Curing Conveyor
Introducing a versatile range of industrial curing solutions with our UV Curing Conveyor systems. Engineered for both high performance and precision, these conveyors utilise either a powerful UV LED head or a gas discharge lamp to deliver the rapid, continuous curing of adhesives, coatings, and inks. These systems are the ideal solution for demanding applications across industries like electronics manufacturing, medical device assembly, and printing. Featuring intuitive controls and a variety of customisable specifications—including belt type, width, and speed—you can precisely manage the curing process to ensure consistent results and maximum productivity. With a modular and scalable design, our conveyors offer seamless integration into various production lines, adapting to your specific needs.
If you have any questions, please contact us to discuss your specific needs.
In-line UV LED Curing Conveyor
Conveyor Specifications

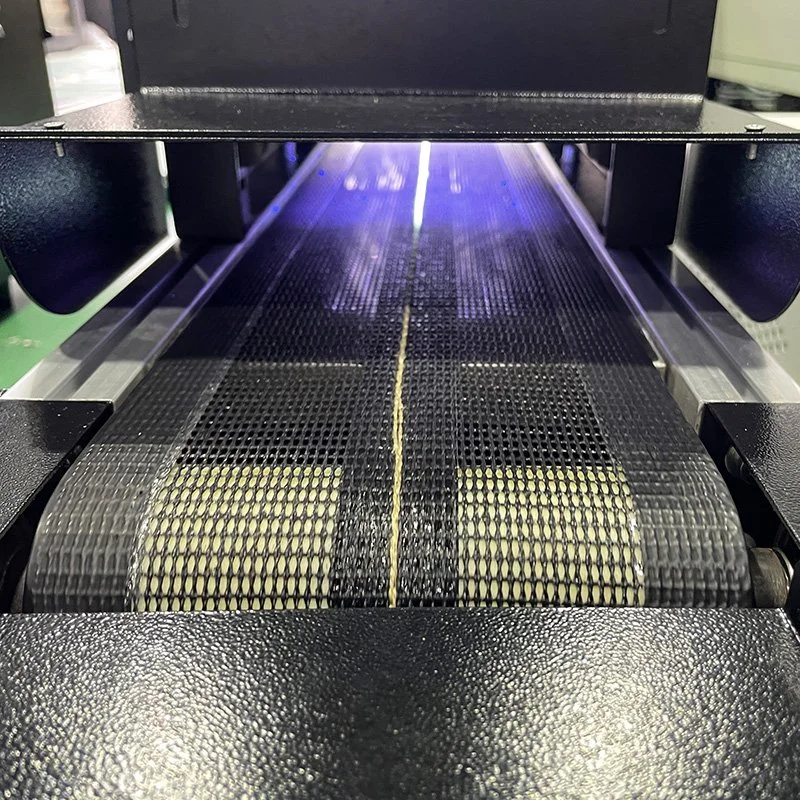

Conveyor Type: Metal or UV-resistant teflon mesh belt, or chain and sprocket
Conveyor belt width: 200mm to 1000mm, other width available upon request
Conveyor belt length: 1, 1.2, 1.5 or 2 metres, other length available upon request
Conveyor belt speed: Adjustable from 0 up to 130mm/s (~ 8m/min)
Controls: Intuitive touch-screen controls
External Communications: Analog PLC (24V) Input/Output connections, SMEMA, RS232, RS485 communication ports
Safety Features: Complete UV-blocking enclosure, traffic light beacon with alarm, emergency stop switch, motion sensors for material loading and unloading

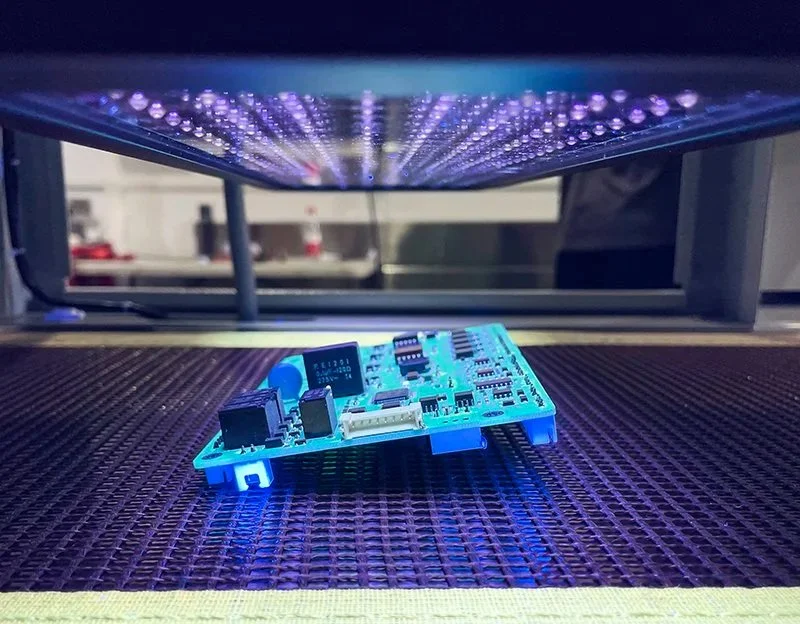

Area or Line UV LED Curing Heads
LED Wavelength: 365nm, 385nm, 395nm, 405nm and other wavelengths upon request
Light Intensity: Up to 10,000 mW/cm²
Power: Adjustable power settings from 10% to 100%
Operating Life: > 20,000 hours under normal operating conditions
LED Irradiation Area: A wide range of options available to suit your application needs
Adjustable LED position above conveyor
Options: Water cooling LEDs for highest intensity output, top and bottom in-line UV curing, 360° in-line UV curing
Versatile in-line conveyor configurations customised to every application needs
Modular conveyors for easy integration and relocation
Top and bottom (Double-sided) UV curing conveyor

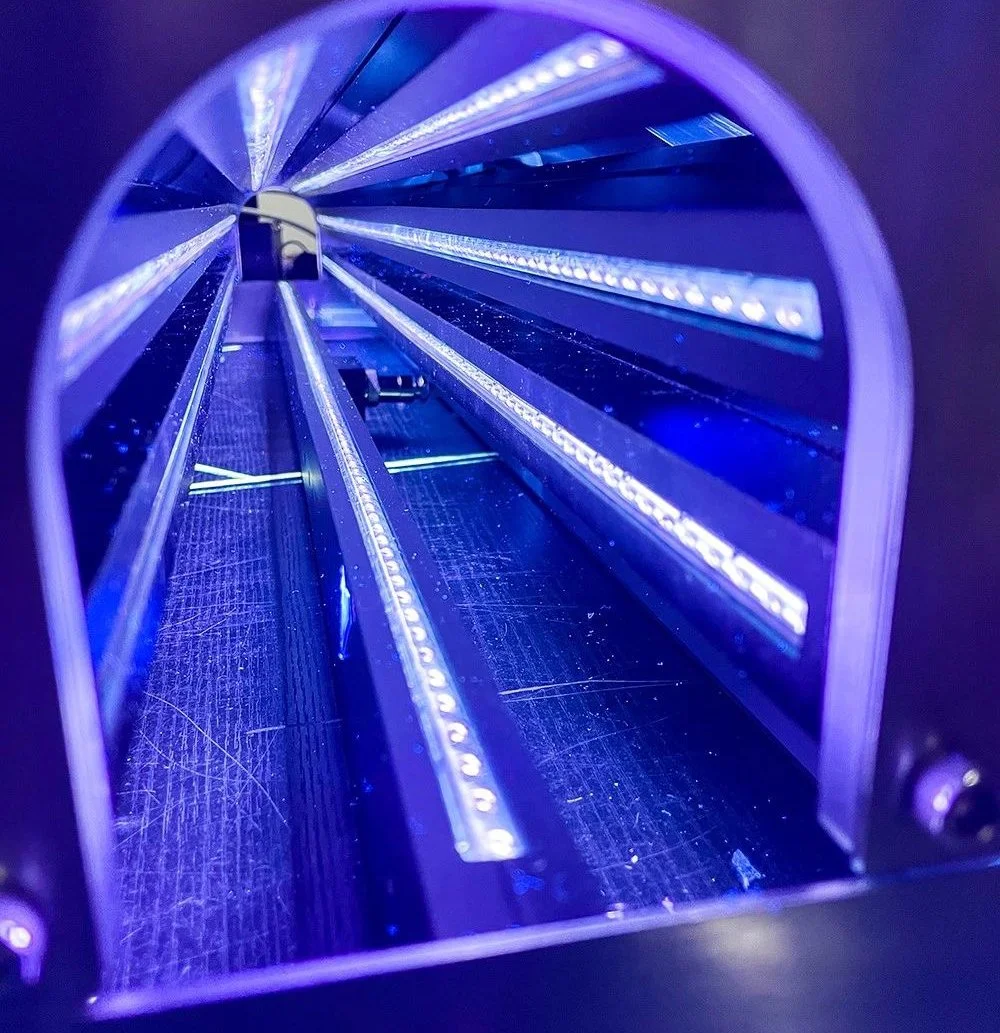

360° all-round UV curing conveyor
Bench-top UV Curing Conveyor

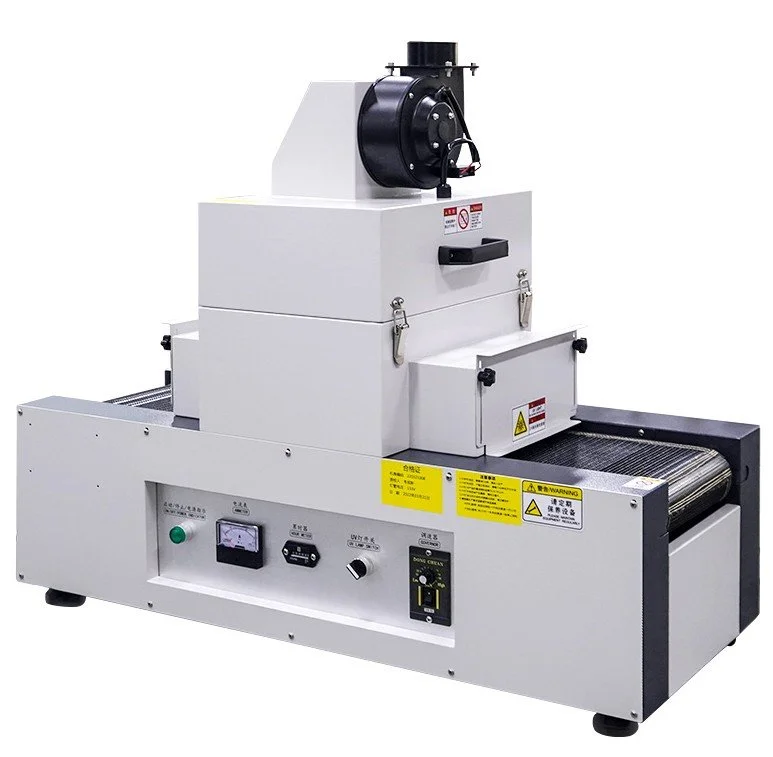

Conveyor with UVA Gas Discharge Lamp
Conveyor with UV LED Head
Light Source 1: Gas Discharge Lamp
Lamp Power: 2 kW
Light Intensity at 100mm irradiation height:
UVA - 161 mW/cm2, UVB - 172 mW/cm2, UVC - 38 mW/cm2, UVV - 119 mW/cm2
Power: Single power
Operating Life: Around 1,000 hours in general use
Lamp Coverage: Covers conveyor width 400mm
Adjustable lamp height
Light Source 2: LED Head
LED Wavelength: 365nm, 385nm, 395nm, 405nm and other wavelengths upon request
Light Intensity: Up to 10,000 mW/cm²
Power: Adjustable power settings from 10% to 100%
Operating Life: > 20,000 hours under normal operating conditions
LED Irradiation Area: A wide range of options available to suit your application needs
Adjustable LED height
Conveyor Specifications
Conveyor Type: Metal or UV-resistant teflon mesh belt
Conveyor belt width: 100mm to 1000mm, other width available upon request
Conveyor belt length: 1, 1.2, 1.5 or 2 metres, other length available upon request
Conveyor belt speed: Adjustable from 0 up to 130mm/s (~ 8m/min)
Controls: Main power supply switch, lamp switch, lamp operating hours counter and belt speed adjustment dial
Safety Features: Complete UV-blocking enclosure, traffic light beacon with alarm, emergency stop switch
Reliable conveyor with variable speed
