LED Line Curing System

Introducing the next generation of industrial curing with our LED Line Curing System. Engineered for high performance and precision, this system delivers a highly focused and uniform line of UV light for the rapid, continuous curing of adhesives, coatings, and inks. It is the ideal solution for demanding applications across a wide range of industries, including electronics manufacturing, medical device assembly, printing, flame retardant coating and more. With its advanced controller and user-friendly interface, you can precisely manage power and duration to optimize your curing process, ensuring consistent results and maximum productivity. The compact and scalable design of the LED heads makes them perfect for seamless integration into automated conveyor systems and for adapting to a variety of production speeds and line geometries.

If you have any questions, please contact us to discuss your specific needs.

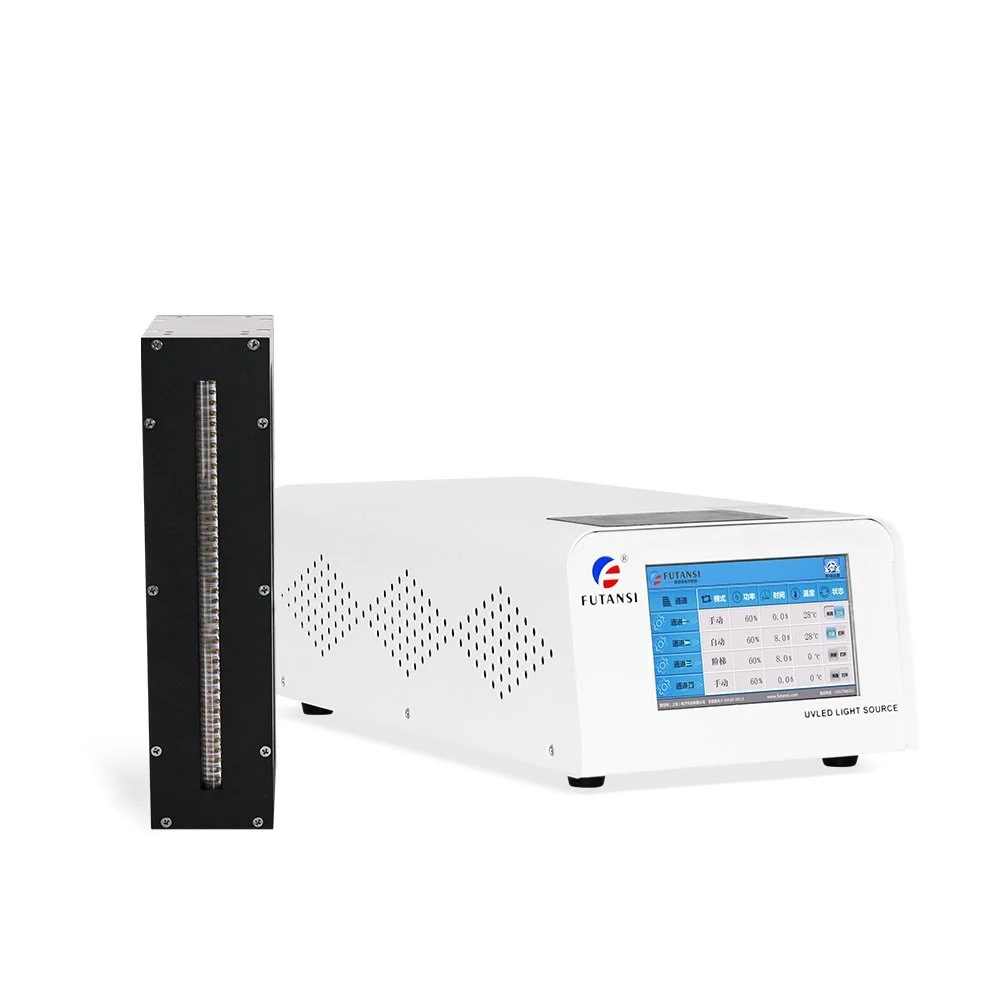

UV line curing LED head with a controller at the back

Technical Specifications

  • LED Wavelength:

    • Standard: 365nm, 385nm, 395nm, 405nm

    • Custom: Other wavelengths available upon request

  • Light Intensity: Up to 10,000 mW/cm²

  • Operating Life: > 20,000 hours under normal operating conditions

  • Cable Length: 2 metres

  • LED Irradiation Area: See table below

  • Options: Water cooling option for higher intensity

LED Irradiation Area

Find the perfect fit for your application in the table below, which shows our available standard irradiation areas. We also offer custom sizes and configurations, so feel free to reach out with your specific requirements.

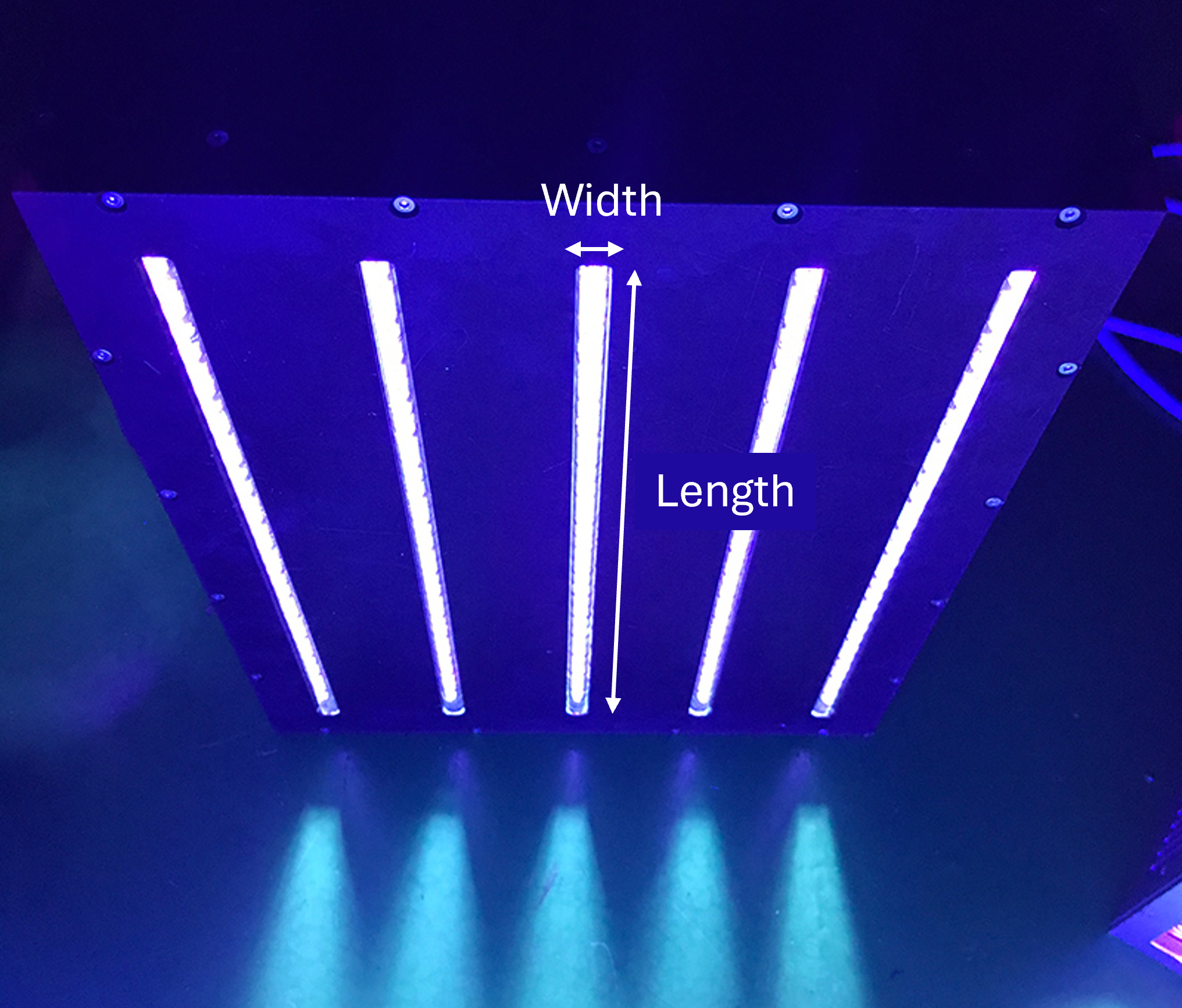

An illustration of a LED line curing head with labeled dimensions for width and length.

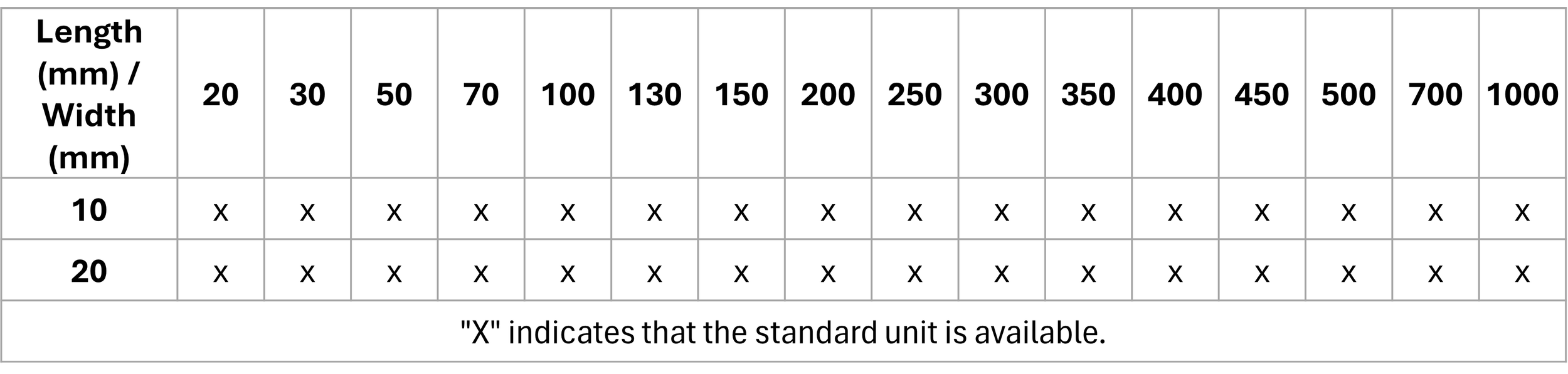

A size chart table showing standard UV line curing LED size available with measurements in millimeters for length and width. Cells marked with X indicating availability of standard units.

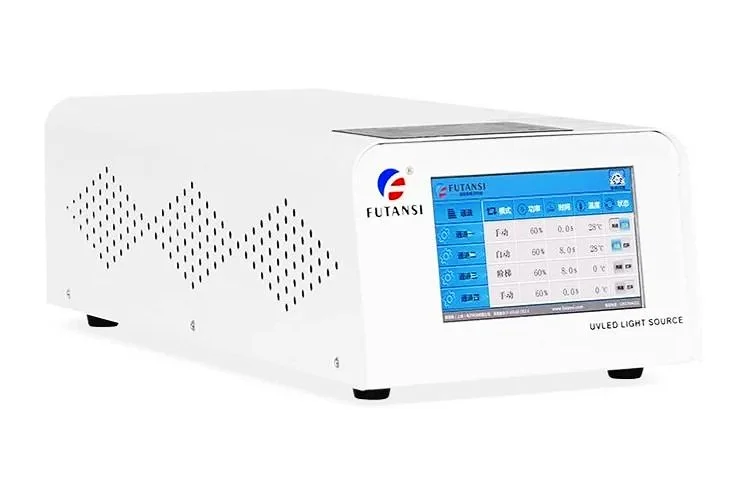

A versatile UV LED controller with touch display for UV line curing systems

Controller

  • Display: Intuitive touch-control interface

  • LED Control Channels: Four LED head channels with independent parameters and operation mode control

  • Power: Adjustable power settings from 10% to 100%

  • Timer: Countdown timer settings from 0.1s to 999.9s

  • Operation Modes:

    • Continuous run at constant power setting

    • Timer mode at constant power setting

    • Multi-steps profile, up to 20 steps in 1 cycle

  • External Controls:

    • Analog PLC (24V) Input/Output connections

    • RS232, RS485 communication ports

    • Footswitch

    • External safety communication port

Operation Modes

Continuous run

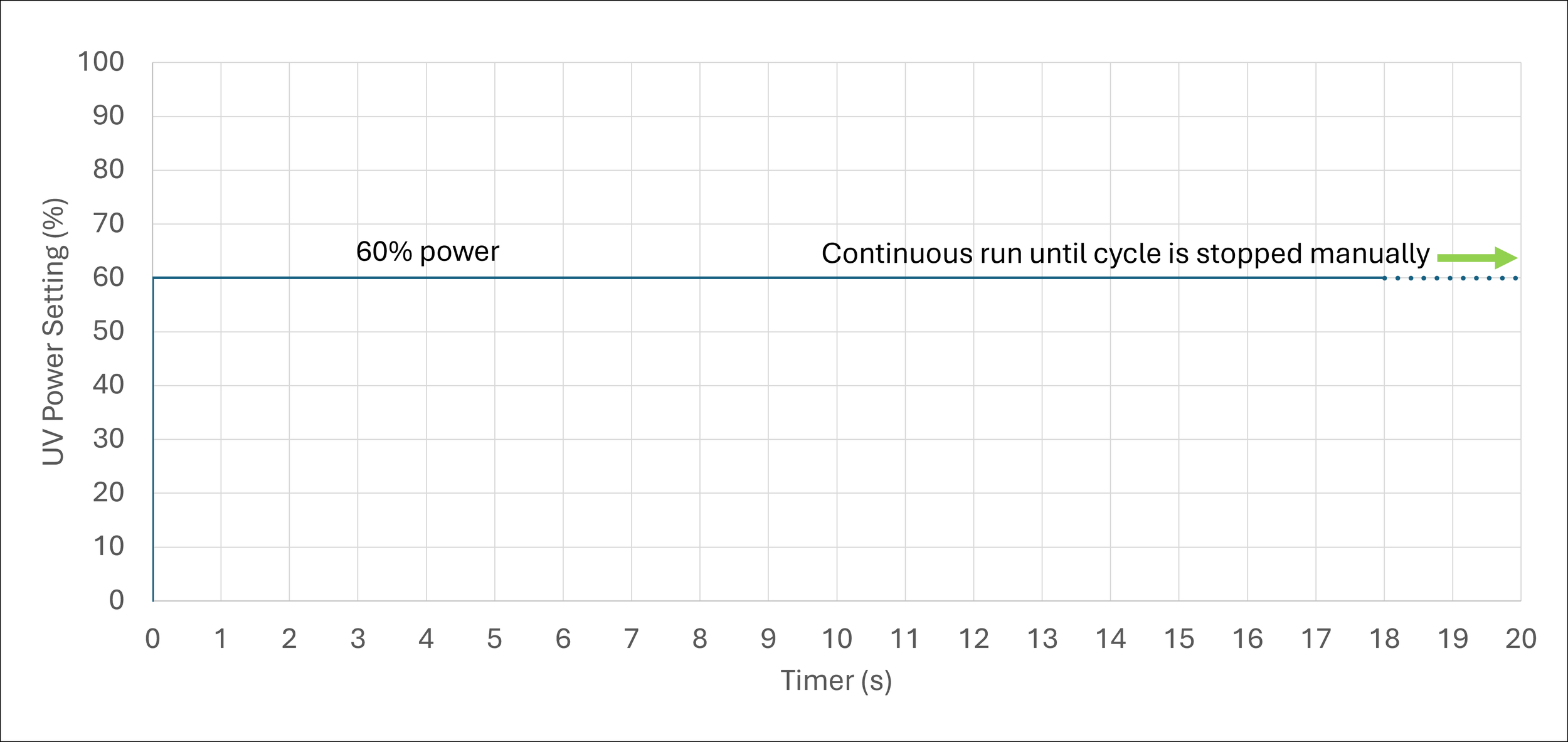

A graph showing UV curing manual mode. UV power is set to 60% and triggered to start. The power remains at 60% and the power is then cut off by manual trigger.

Timer mode

A graph showing UV curing timer mode. UV power is set to 60% and timer set at 15 seconds.and triggered to start. Upon trigger, the UV LED head will emit UV light at 60% power for a duration of 15 seconds as programmed.

Multi-steps profile

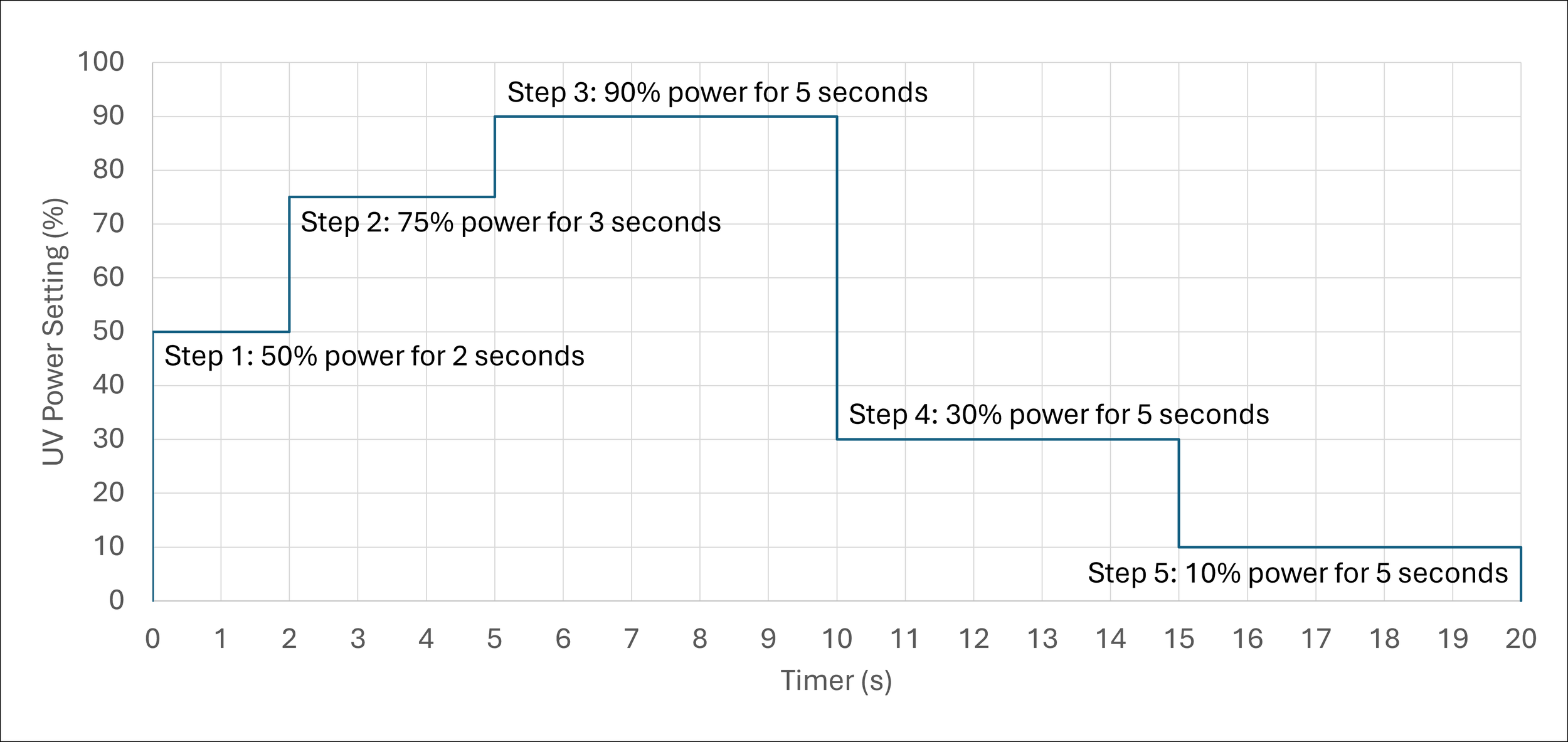

A graph showing UV curing step mode. Step 1: 50% power for 2 seconds, Step 2: 75% power for 3 seconds, Step 3: 90% power for 5 seconds, Step 4: 30% power for 5 seconds, Step 5: 10% power for 5 seconds.

Have questions or need a demo?

We would love to help! Get in touch with our team for more information or to arrange a system demonstration.
